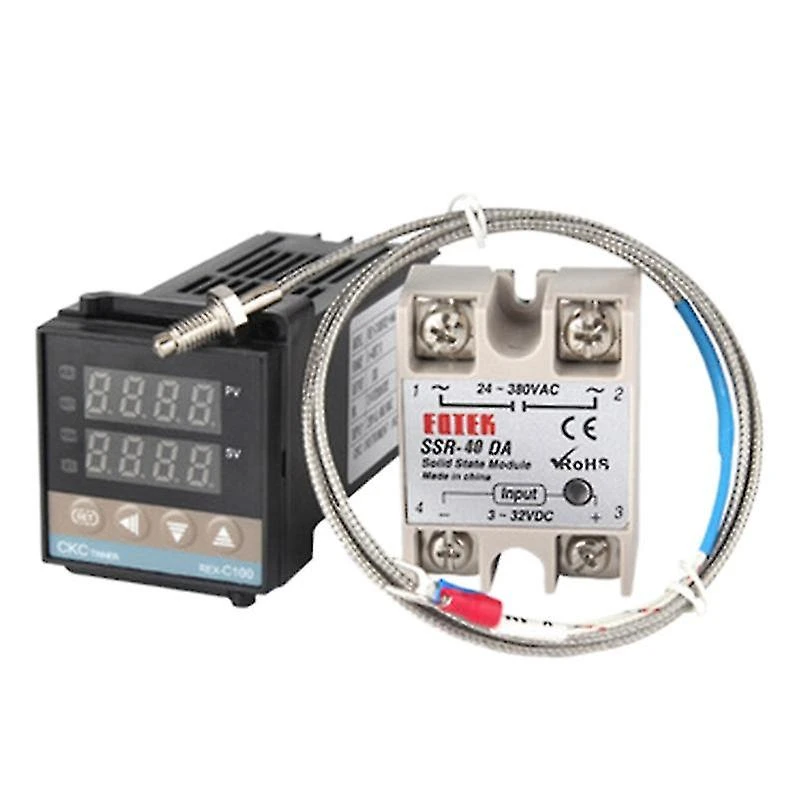

-C100 Temperature Controller, Dual Digital Display Temperature Controller+Thermocouple + 40DA Solid State Relay

1. Dual digital display temperature controller group] controller group comes with digital -C100 temperature controller + maximum 40A + K thermocouple for your use
2. [Compatibility] The temperature control is specially designed for single-phase solid state relays
3. [Proportional band (P)] 0~full range (ON/OFF control when set to 0)
4. [Time setting] Integral time (I): 0~3600 sec (no integral action when set to 0), derivative time (D): 0~3600 sec (no derivative action when set to 0)
5. [Set value (SV)] is same as measurement range (PV)

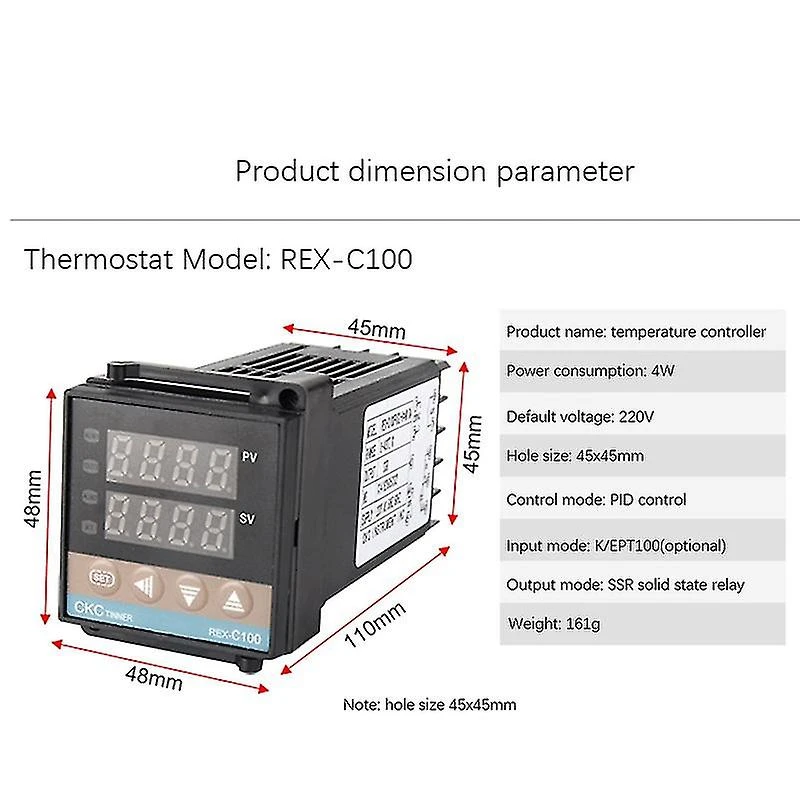

1. Product name: thermostat
Power consumption: 4W
Default voltage: 220V
Hole size: 45X45mm
Control : control
Output mode: solid state relay
Product weight: 161g
2. Product name: solid state relay
Control : DC control AC
Input voltage: 3-32V DC
Control voltage: 24-380VAC
Load current: 40A
Ambient temperature: -30 Celsius~+70 Celsius
Working frequency: 50-60HZ
Control current: 3-35mA DC
Product weight: 81G

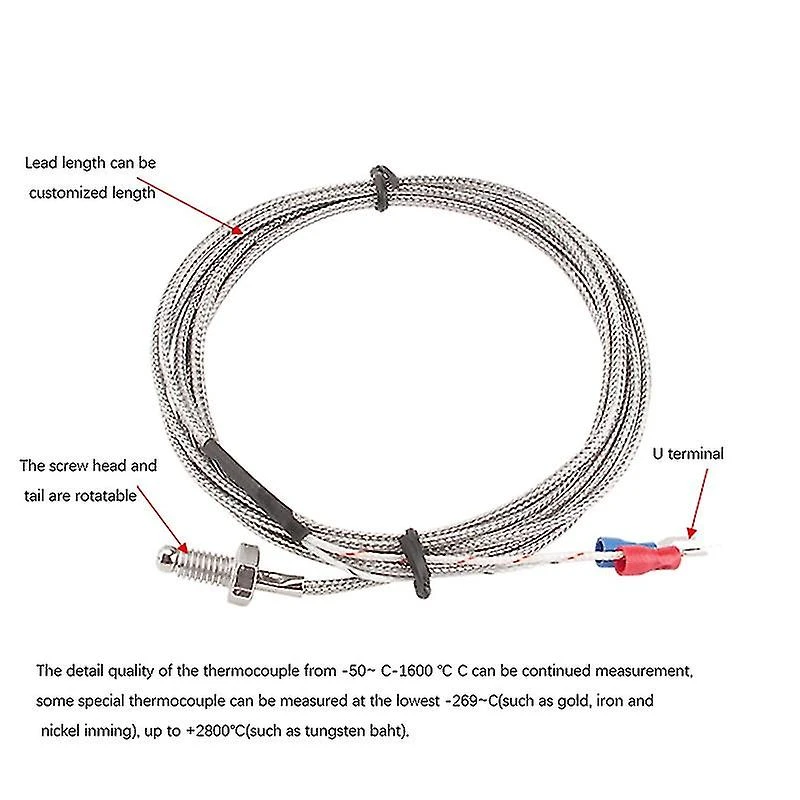

3. Product name: screw type thermocouple
Model specification: K type
Screw specification: M6 inch
Lead length: 1 meter
Measuring range: 0-400 Celsius
Terminal: U-shaped terminal
Product weight: 16g
Colour:Black
Material:ABS

Package Contents:
1* Temperature Controller
1* Thermocouple
1* 40DA Solid State Relay
1*Heat sink

Only above package content, other products are not included.
Note: Light and different displays may cause color of item in picture a little different from real thing. The measurement allowed error is +/- 1-3cm.
